1.5kW Paper Board Batten Chamfering Machine Insulation Processing Machines

Place of Origin : China

Certification : GOST, CE etc.

MOQ : 1 set

Packaging Details : Main press and spare parts

Delivery Time : discuss in letter

Payment Terms : FOB, CIF, CFR etc.

Supply Ability : production line

Contact Now

1.5kW Paper Board Batten Chamfering Machine Insulation Processing Machines

A: Usage:

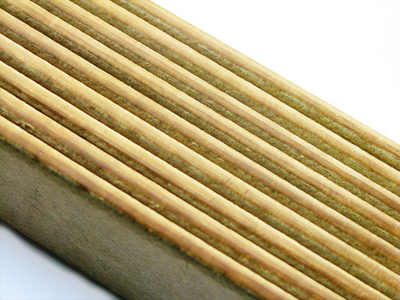

To chamfer batten (cardboard) and make both sides of batten to be arc. The finished product is used for processing block (spacer) with straight or swallow-tail slots for transformer’s insulators.
B: Equipment components:
Worktable, milling system, rollers, loading support, dust collection device (optional) and electrical control system etc.
C: Specifications:

No.	Name	Description
1	Batten (cardboard) width	30-60mm
2	Batten (cardboard) thickness	1.5-8mm
3	Speed of tool spindle	6000r/min
4	Feed speed of batten (cardboard)	3-10m/min (adjustable)
5	Moving distance of tool	30-60mm
6	Milling motor power	1.5kW´2
7	Feeding motor power	0.75kW
8	Power supply	380V, 50Hz

Product Tags:

Insulation Processing Machines

batten processing

paperboard processing
