5.5kW Paper Board Block Processing Machine Insulation Processing Machines

A: Usage:
To process block with straight or swallow-tail slots etc.
B: Equipment components:
Stand, feeding platform, 1 set of sawing device, 2 sets of milling device, 2 sets of chamfering device, dust collection device (optional), PLC control system
C: Processing procedure:
Clamp (processing product)---feed---saw the front end---mill and chamfer the front end into slot---feed and discharge---cut off by saw---mill and chamfer the other end into slot---discharge……….
D: Processing product (raw material) dimensions:
Length: 1000-3200mm
Width (height): 25-60mm
Thickness: 1.5-10mm
Overlapping thickness once: 100-400mm

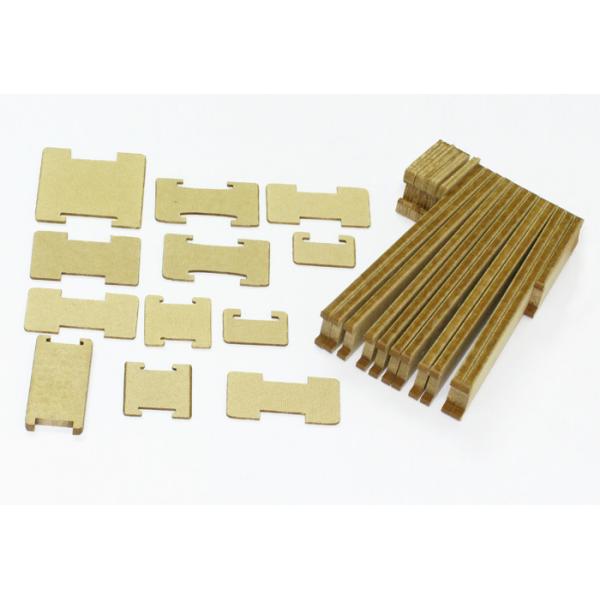

E: Processed block dimensions:
Length: 30-400mm
Width: 25-60mm
Thickness: 1.5-10mm
F: Specifications:

Speed of chamfering tool	4500r/min
Speed of grooving tool	7000r/min
Speed of circular saw	4000r/min
Dimensions	6000(L)´3000(W)´1800(H)mm
Power supply	380V, 50Hz
Motor output power	Feeding servo motor	1kW
	Chamfering motor	1.1kW´2
	Grooving motor	1.1kW´2
	Sawing motor	4kW
	Milling drive motor	1.5kW
	Discharging drive servo motor	1.5kW
	Sawing drive motor	0.75kW
	Dust collection motor	5.5kW´2
	Condensed air requirements	0.5Mpa, 90m³/min
